SabTools vs Top Voltage Drop Calculator Alternatives — 2026 Review

If you're sizing a cable run for a workshop in Pune, a borewell pump in rural Karnataka, or a long lighting circuit in a Mumbai high-rise, the first question you'll Google is some variant of "voltage drop calculator." The top results will almost always be RapidTables and Calculator.net — two solid US-built calculators that have been ranking for a decade. The actual decision you're making, though, is narrower: which one gives you a number you can defend to an Indian electrical inspector who expects compliance with the IS 732 / National Electrical Code 3% drop limit?

Quick verdict: For pure formula crunching with American Wire Gauge (AWG) inputs, RapidTables and Calculator.net are fine. For Indian work — where cables are sized in sq mm, supply is 230V single-phase / 415V three-phase, and the acceptable drop is benchmarked against the 3% IS standard — SabTools' Voltage Drop Calculator is built around exactly those defaults, which saves you the unit conversions and the "is 4% okay?" guesswork.

What "voltage drop" actually means for an Indian site

Voltage drop is the reduction in voltage between the supply end and the load end of a cable, caused by the resistance of the conductor itself. The formula every calculator uses is the same:

V_drop = (2 × L × I × R) / 1000 (single-phase) or √3 × L × I × R / 1000 (three-phase), where L is one-way length in metres, I is current in amperes, and R is resistance per km of the conductor.

The math is universal. What changes between calculators is the defaults, the units, and the verdict they give you at the end. For Indian work, the Central Electricity Authority and IS 732 recommend voltage drop should not exceed 3% from the consumer's terminal to any point of utilisation. A calculator that just shows you "voltage drop = 6.2V" without telling you whether that's acceptable is doing half the job.

Side-by-side: SabTools vs RapidTables vs Calculator.net

Input units and defaults

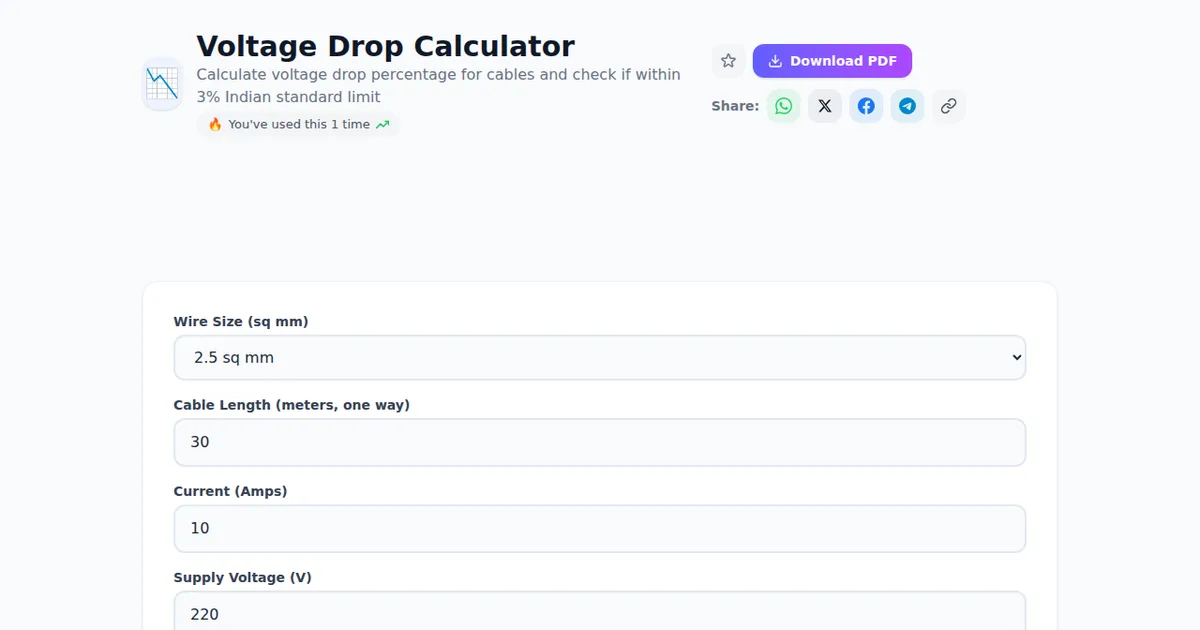

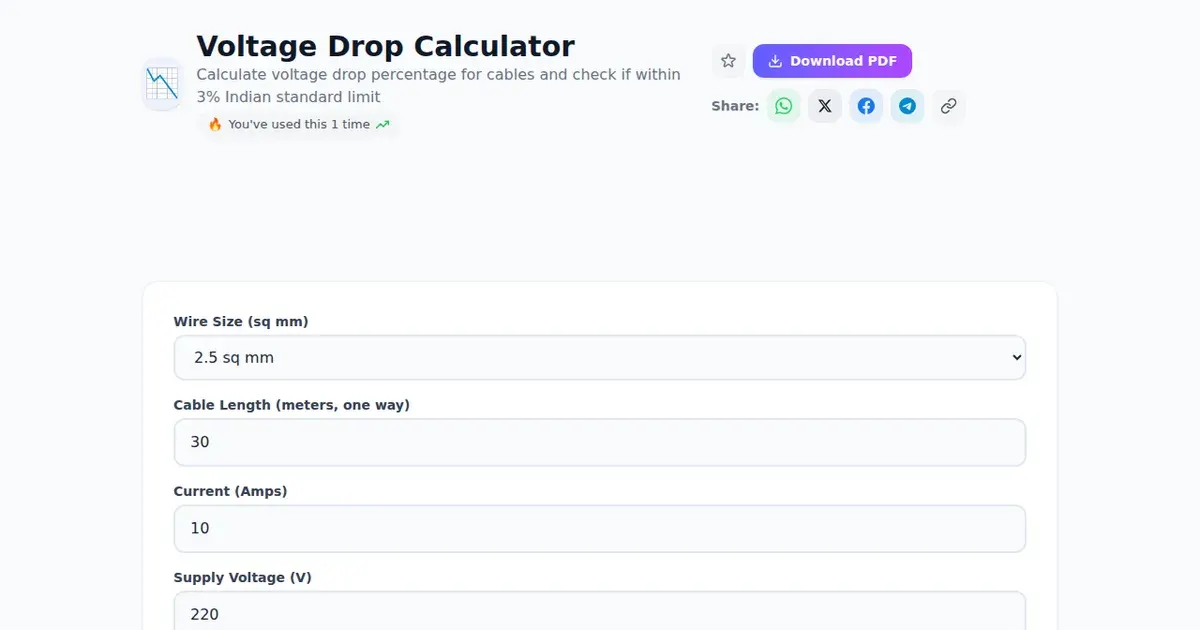

• SabTools: Cable size in sq mm (1.5, 2.5, 4, 6, 10, 16, 25, 35, 50 — the standard Indian copper/aluminium sizes), voltage defaults to 230V/415V, length in metres.
• RapidTables: Accepts both AWG and mm². Defaults to AWG. You can switch, but you'll do it on every visit. Voltage default is typically 120V.
• Calculator.net: AWG-first, voltage default 120V/240V, length in feet (toggleable to metres). The example values shown on screen are American household scenarios.

None of this is a flaw in the US tools — they're built for their primary audience. But if you're an Indian electrician sizing a 4 sq mm copper feeder, 35 metres, 16A load at 230V, the SabTools defaults match your worksheet directly. On RapidTables, you'll change the unit dropdowns three times before you hit calculate.

The "is this acceptable?" verdict

This is where the gap widens. SabTools' calculator returns voltage drop in volts, in percentage, and a pass/fail flag against the 3% Indian standard limit. Example: a 50-metre run of 2.5 sq mm copper carrying 20A at 230V shows a drop of ~6.4V (2.78%) — within limits, flagged green. Bump the length to 70m and it crosses 3.9%, flagged red with a suggestion to step up to 4 sq mm.

RapidTables and Calculator.net give you the number. The interpretation is on you. For a working electrician that's fine. For a student, a small contractor, or a homeowner reviewing what their electrician is proposing, the explicit verdict matters.

Material support

• SabTools: Copper and aluminium, with resistivity values pre-loaded. Aluminium matters in India because long agricultural and street-lighting runs use it for cost reasons.
• RapidTables: Copper and aluminium, both supported well.
• Calculator.net: Copper and aluminium, with temperature correction options that are genuinely useful for outdoor runs.

Credit where it's due — Calculator.net's temperature correction option is a feature SabTools doesn't expose by default. If you're calculating for a conduit in a Rajasthan summer where ambient hits 50°C, that matters. For most indoor or shaded Indian wiring at 30–40°C ambient, the default values are close enough.

Where RapidTables and Calculator.net genuinely win

An honest comparison has to name competitor strengths, not just hand-wave them. Both US tools have things SabTools doesn't:

• Deep AWG support. If you're working on imported industrial equipment with US-spec wiring diagrams, RapidTables will let you stay in AWG without conversion.
• Reference tables on the same page. RapidTables in particular keeps full resistance tables visible — useful if you want to verify the math by hand.
• Temperature derating inputs. Calculator.net exposes conductor temperature as an input, which advanced users will appreciate.
• Brand recognition. Both have been around since the early 2010s. If you're cross-checking a calculation, having a globally-known second source is reassuring.

These aren't reasons to dismiss them. They're reasons to use them as a second opinion when you're doing edge-case work — high-temperature environments, AWG-spec equipment, or a sanity check on an unusual cable size.

Where SabTools is the better default for Indian work

1. The 3% IS limit is baked in

You don't have to remember what the acceptable threshold is. The result either says "within acceptable limit" or "exceeds 3% — increase cable size." This is the single biggest time-saver if you're not doing this calculation daily.

2. Indian cable sizes as a dropdown, not free text

Indian electricians order cable as "2.5 square" or "4 square" — meaning 2.5 sq mm and 4 sq mm. The dropdown matches that vocabulary. You're not typing 2.5 into a field labelled "cross-sectional area" while wondering whether the calculator expects mm² or in². The dropdown approach also catches typos — you can't accidentally enter 25 sq mm when you meant 2.5.

3. Defaults match Indian supply

230V single-phase and 415V three-phase are pre-filled. On a US calculator, even when you change 120V to 230V, the example labels and tooltip text still talk about NEC code and US household wiring. Small thing, but it adds friction every visit.

4. Works fully offline, in your browser

The calculation runs on your device. No data is uploaded, no signup is required, and the page works on a metered 4G connection at a remote site once it has loaded once. This isn't a marketing claim — it's how the page is built. For a contractor doing a site survey in a basement parking, that matters.

A worked example: 7.5 HP borewell pump, 80 metres from the meter

Let's run an actual scenario all three tools would handle:

• Load: 7.5 HP (5.5 kW) three-phase submersible pump, ~12A full-load current at 415V
• Cable run: 80 metres from the starter panel to the borewell head
• Proposed cable: 4 sq mm copper, 3-core + earth

Plugging this into SabTools:

• Voltage drop: ~8.6V
• Percentage: ~2.07%
• Verdict: Within acceptable 3% limit ✓

Plugging the same scenario into RapidTables: you get a voltage drop number in volts. You then divide by 415, multiply by 100, get 2.07%, and compare to the 3% mental benchmark yourself. Same answer, three extra steps.

Now lengthen the run to 120 metres. SabTools flags it as exceeding the limit at ~3.1% and you'd step up to 6 sq mm. RapidTables gives you the new voltage drop figure and you do the percentage math again. For occasional users — homeowners, students, junior site engineers — the explicit flag prevents the all-too-common mistake of treating "voltage drop = 13V" as fine because it sounds small relative to 415V.

Connecting the calculation to the rest of the design

Voltage drop isn't an isolated check. It's part of a chain — load calculation, current draw, cable selection, drop verification, then breaker sizing. SabTools has the rest of that chain in the same place:

• Start with Ohm's Law Calculator to confirm the current draw from voltage and resistance, or to verify nameplate ratings.
• Use the Wire Size Calculator to pick a starting cable size in sq mm based on current and length per Indian standards.
• Run that proposed size through the Voltage Drop Calculator to confirm it stays under 3%.
• If you're stepping up or down voltage at the panel, the Transformer Calculator handles turns ratio and secondary voltage.
• For the homeowner side — "what will this pump cost me to run?" — the Power Consumption Calculator closes the loop with monthly kWh and rupee figures.

RapidTables and Calculator.net have their own ecosystems of calculators, but they're not workflow-linked for Indian electrical design. You'd be bouncing between unrelated pages and re-entering values.

Privacy and the "no signup" question

None of the three calculators here require a signup for the basic tool. That's standard. Where SabTools differs:

• No ads inside the calculator UI itself — the tool page is clean.
• The calculation logic runs in your browser; nothing about your project specs is sent to a server.
• No "premium tier" upsells. The voltage drop calculator doesn't have a paid version with extra features locked behind a wall.

For most users this is a non-issue. For a freelance contractor calculating drops for a confidential commercial project, knowing the inputs don't leave the device has obvious value.

When to use which

Use RapidTables when:

• You're working from US-spec equipment documentation that lists wires in AWG.
• You want a quick second opinion against a familiar global reference.
• You need the resistance lookup tables visible alongside the calculator.

Use Calculator.net when:

• Conductor temperature is unusually high and you want explicit derating in the formula.
• You're cross-referencing an American electrical engineering textbook problem.

Use SabTools when:

• You're sizing cables for Indian 230V / 415V systems at standard sq mm sizes.
• You want an explicit pass/fail against the 3% IS limit, not a raw volts figure to interpret.
• You're a student, contractor, or homeowner who'd rather pick a cable size from a dropdown than convert AWG.
• You want the rest of the design chain — wire sizing, Ohm's law, transformer math — in one place.

Three quick questions readers actually ask

Is 3% the legal limit or just a guideline in India?

The 3% figure comes from IS 732 (Code of Practice for Electrical Wiring Installations) and is treated as the design benchmark by most consultants and inspectors. For motor circuits and longer runs, some specifications allow up to 5% during starting transients, but the steady-state design target remains 3%. Always confirm with your local electrical inspector for project-specific compliance.

Do I use one-way or round-trip length in the calculator?

Enter the one-way length (point A to point B). The SabTools calculator handles the round-trip factor of 2 for single-phase and √3 for three-phase internally. Entering round-trip length will double-count and give you a falsely high drop.

Why does aluminium give a higher drop than copper for the same size?

Aluminium's resistivity is roughly 1.6× that of copper. A 10 sq mm aluminium cable carries about the same current capacity as a 6 sq mm copper cable, but voltage drop will be higher per metre. The calculator accounts for this when you switch the material dropdown — useful when comparing copper vs aluminium feeders for long runs where material cost matters.

Bottom line

RapidTables and Calculator.net are good general-purpose engineering calculators that happen to do voltage drop among hundreds of other things. They're accurate, they've earned their rankings, and there's nothing wrong with using them. But they were built for a different country's wiring conventions, and you'll spend time converting units and interpreting raw numbers.

For Indian electrical work — sq mm cables, 230V/415V supply, 3% IS limit — a calculator built around those defaults removes friction and removes the most common mistake (forgetting to check the percentage against the standard).

Try SabTools' Voltage Drop Calculator → and pair it with the Wire Size Calculator for full cable selection in one workflow.
