How to Use Pipe Size Calculator Online — Step-by-Step Guide

Anyone who has lived in a tier-1 Indian apartment knows the morning shower problem. The flat upstairs runs the washing machine, your neighbour fires up the geyser, and your "rain shower" reduces to a sad trickle. Nine times out of ten, the culprit isn't municipal supply — it's a builder who ran 15mm CPVC where a 20mm or 25mm line was needed, because thinner pipe is cheaper by ₹40-60 per metre and most buyers never check. Multiply that across a 200-flat tower and the developer pockets ₹3-4L; the residents pay for it every morning for the next twenty years.

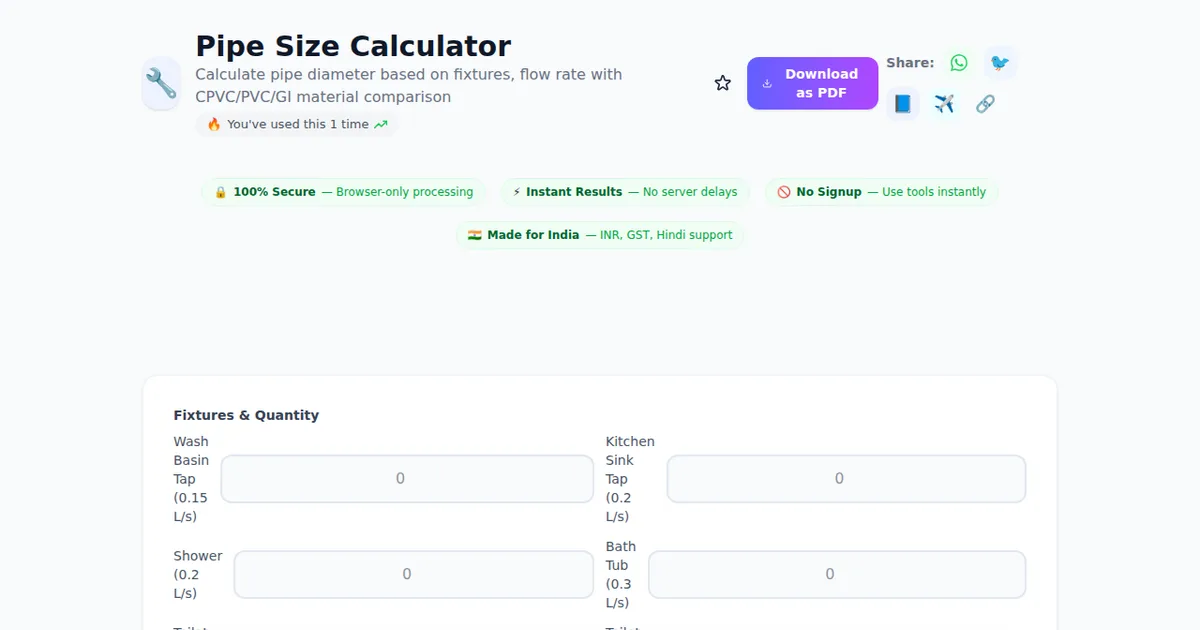

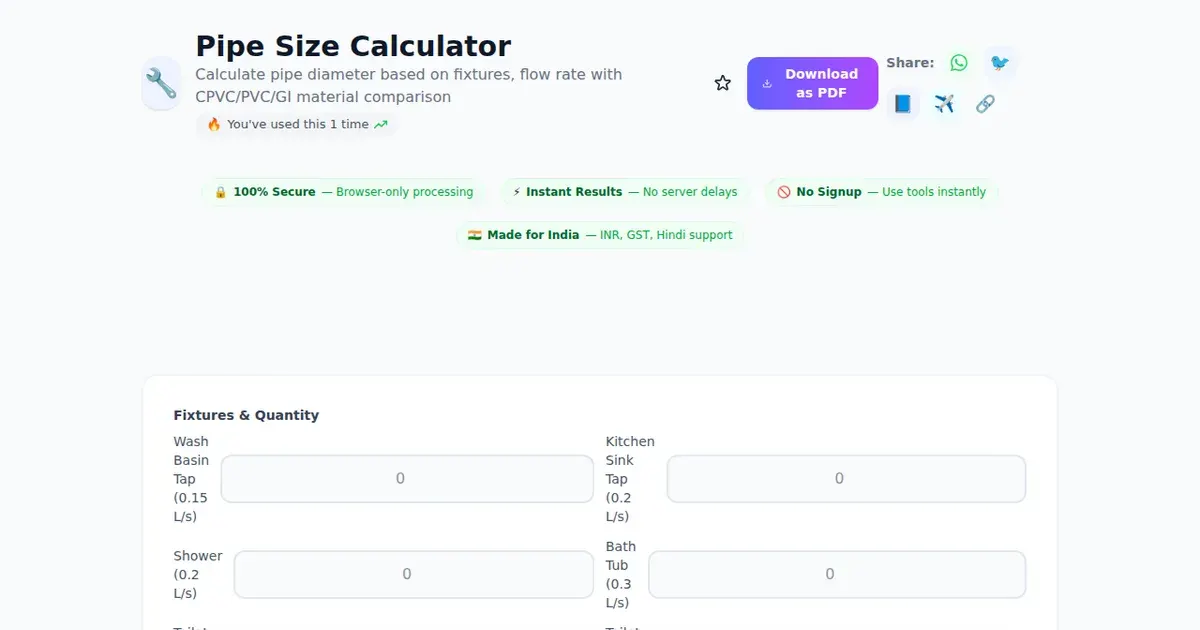

The Pipe Size Calculator on SabTools.in is built to stop that mistake before it becomes concrete. Feed it the fixtures you're plumbing — taps, showers, WCs, washing machines, dishwashers — and it computes the demand in litres per second, picks a diameter that keeps velocity in the safe zone, and tells you what changes if you specify CPVC, PVC, or GI. It's the same arithmetic a consulting plumber in Pune or Hyderabad does on the back of an invoice, except you don't pay ₹2,500 for a site visit to learn that 15mm was never going to work.

Why pipe sizing is the silent failure point in Indian homes

Three things are non-negotiable in a domestic water line: adequate flow at the farthest fixture, velocity under 2.4 m/s (to prevent erosion and water-hammer noise), and pressure drop low enough that the geyser still triggers. Get any of these wrong and you end up with one of the four classic symptoms — weak shower, banging pipes at 6 AM, the kitchen tap going dry when the WC flushes, or a CPVC joint failing in year three because flow velocity chewed the inner wall.

Indian plumbing codes draw heavily from IS 15778 (for CPVC), IS 4985 (for uPVC), and the National Building Code 2016. The NBC recommends sizing pipes by the fixture unit method: each tap, WC, shower and appliance is assigned a demand value, you add them up, apply a simultaneous-use factor (everyone doesn't open every tap at once), and the result tells you the pipe diameter required upstream. The calculator does all of that in the background — you only see the answer.

How the calculator translates fixtures into diameter

The inputs are deliberately simple. Enter the count of each fixture for the section of pipe you're sizing — a 2BHK in Bangalore might have 4 taps, 2 showers, 2 WCs, 1 washing machine inlet, 1 kitchen sink and 1 dishwasher line. The tool internally assigns flow demand using values close to what consulting engineers use:

• Wash basin tap: 0.15 LPS
• Kitchen sink: 0.20 LPS
• Shower head: 0.30 LPS
• WC flush cistern: 0.10 LPS (fills slowly)
• Washing machine inlet: 0.25 LPS
• Bathtub: 0.40 LPS

Raw addition for the 2BHK above gives roughly 2.05 LPS, but applying a simultaneous-use factor of about 0.4 brings actual peak demand to around 0.82 LPS. At a target velocity of 2 m/s, the cross-section required is ~4.1 cm² — which lands you on a 25mm (1") nominal CPVC line for the main riser, stepping down to 20mm for the bathroom branch and 15mm for the final fixture connection. That stepped sizing is exactly what good Indian site plumbers do; what the calculator adds is the discipline of writing it down before the line is buried in the wall.

CPVC vs PVC vs GI — what the material switch actually costs

The same flow demand produces different recommendations depending on the pipe material, because each has different friction characteristics (Hazen-Williams C-factor) and different standard inner diameters for the same nominal size.

CPVC (Chlorinated PVC)

The de facto standard for hot and cold water in Indian homes since 2010. Brands like Astral, Ashirvad, Supreme and Prince dominate the market. CPVC handles up to 93°C, doesn't corrode, and a 25mm pipe runs ₹160-220 per metre in 2025. The C-factor of 150 means very low friction loss — a 30-metre run drops barely 0.3 bar at design flow. For a typical 3BHK in Whitefield or Gurgaon, the entire CPVC piping package (pipes, fittings, solvent cement, labour) usually lands between ₹38,000 and ₹62,000.

PVC (uPVC)

Used mostly for cold-water-only lines, rainwater downtakes, and drainage. Cheaper than CPVC by 25-35% — a 25mm uPVC pipe sits around ₹110-140 per metre. It cannot handle hot water (softens above 60°C), so plumbers who use uPVC for the cold line still need CPVC for the geyser circuit. Mixing materials is fine if joints are done correctly, but it complicates inventory and is rarely worth the ₹4,000-6,000 saving on a full house.

GI (Galvanised Iron)

Still specified in some municipal building bye-laws and in older constructions across Mumbai, Kolkata and parts of Chennai. GI's C-factor is only 100-120 and drops further as the inside rusts — meaning the calculator will often recommend the next size up in GI versus CPVC for the same flow. Where 20mm CPVC suffices, you may need 25mm GI to deliver the same flow ten years from now. Add the cost of corrosion in five to seven years and GI is rarely the right answer for a new build, despite its tensile strength.

The calculator presents these three options side by side, so you see not just "use 25mm" but "25mm CPVC OR 32mm GI" — and the cost delta is usually enough to settle the argument with your contractor.

A worked example: 3BHK in Pune, top floor

Take a 1,250 sq ft 3BHK in Baner, top floor of a G+11 tower. Three bathrooms, one kitchen, one utility, one balcony tap. Total fixture count: 6 taps, 3 showers, 3 WCs, 1 kitchen sink, 1 washing machine, 1 dishwasher, 1 utility tap. Raw flow demand adds up to roughly 3.1 LPS; applying a simultaneous-use factor of 0.35 (residential, fewer concurrent users than commercial) gives a design flow of 1.08 LPS.

At 1.8 m/s velocity that needs a cross-section of 6.0 cm² — which puts the main riser from the overhead tank at 32mm CPVC (1.25"). From there:

• Riser into the apartment: 32mm
• Branch to each bathroom: 25mm
• Fixture tail to each tap, shower, WC: 15mm
• Geyser inlet and outlet: 20mm (hot-side velocity should be more conservative)

Total CPVC pipe required — roughly 90-110 metres including fittings — works out to ₹14,000-17,500 in material, plus ₹12,000-15,000 in labour at current Pune rates. Builders who put in 20mm risers to save ₹4,000 per flat are the reason your top-floor friend has a weak shower. The calculator makes that trade-off visible before it gets sealed inside a wall.

The overhead tank connection nobody plans for

Pipe size doesn't exist in isolation — it's downstream of how much water your tank delivers and how high it sits. Before sizing pipes, work out the tank itself using the water tank size calculator for Indian families, which factors in BIS-recommended 135-200 litres per person per day. A family of four in a 3BHK typically needs a 1,000-litre overhead and matching 2,000-litre underground sump.

The available head — vertical distance from tank outlet to the highest fixture — sets your starting pressure. A standard ground-floor flat in a G+4 building with tank on the terrace gets about 1.2-1.5 bar at the kitchen tap; a top-floor flat may get only 0.3-0.5 bar, which is below what most instant geysers need to trigger. If your sizing math shows pressure dropping below 0.2 bar at the farthest fixture, the answer isn't "live with weak flow" — it's a 0.5 HP pressure pump and bigger trunk pipe, both of which the calculator's output will hint at.

Rainwater, drainage and the other half of plumbing

Supply lines are only half the job. Rainwater downtakes and soil/waste lines use the same uPVC family but are sized by roof catchment area, not fixtures. If you're planning a new build or renovation, use the roof area calculator with sheet estimation first — the catchment area, combined with regional rainfall intensity (Mumbai gets 100 mm/hr peak, Bangalore around 60 mm/hr), determines whether you need a 75mm, 90mm or 110mm downtake. A 1,000 sq ft flat roof in Surat under monsoon needs at least two 90mm downtakes; one will overflow within minutes.

Drainage lines for WCs and kitchens use 110mm and 75mm uPVC respectively, sloped at 1:50 to 1:80. These don't need fixture-flow calculations the way pressure lines do, but they do need accurate length and fittings count for material estimation — useful when you're tallying the overall plumbing budget alongside flooring cost across tile, marble and vinyl options and electrical load with MCB and wire sizing for the full renovation sheet.

Common mistakes the calculator helps you avoid

1. Single-size piping throughout. Running 20mm CPVC from riser to fixture is lazy and wasteful — the riser is undersized, the fixture tail is oversized. Stepped sizing (32→25→20→15) is the correct pattern.
2. Ignoring hot-water sizing. The geyser outlet feeds only the bathroom it serves, but plumbers often run 15mm everywhere. For a shower drawing 0.3 LPS off a 25-litre geyser, you want 20mm on the outlet to keep velocity and pressure drop reasonable.
3. Mixing brands of CPVC fittings. Astral and Ashirvad are both IS 15778 compliant, but socket fusion dimensions differ slightly. Pick one brand and stick to it for the whole flat.
4. Skipping the simultaneous-use factor. Sizing the main riser for the sum of every fixture leads to a 40mm trunk where 25mm would do — wasteful by ₹6,000-8,000 on a 3BHK.
5. Forgetting valve and fitting losses. Each elbow adds about 0.5 m of equivalent pipe length, each tee about 1.0 m. A bathroom with twelve fittings adds 8-10 m of equivalent length, which the calculator's friction-loss output already accounts for.

Buying smart: the GST and contractor angle

CPVC pipes attract 18% GST, fittings the same. A ₹40,000 plumbing material bill carries ₹6,100 in GST — use the GST calculator at 5%, 12%, 18% and 28% rates to verify what your contractor's quotation actually includes. Many small contractors quote "all inclusive" and pocket the input tax credit; if you're a homeowner you can't claim ITC anyway, but you should see GST listed separately so material vs labour is transparent.

For projects financed as part of a home loan or renovation top-up, plumbing usually falls under the 8-12% of construction cost bucket. On a ₹50L flat that's ₹4-6L total wet works (plumbing + sanitary fittings + tiles). If you're stretching the EMI math, run the numbers through the home loan EMI calculator with the renovation amount added — a ₹3L top-up at 9.25% over 10 years adds about ₹3,840 to monthly outflow. Worth it if the alternative is replumbing the entire flat in year five because the original 15mm CPVC couldn't take the load.

Quick reference: pipe size by application

• Single wash basin or WC tail: 15mm CPVC
• Shower or geyser connection: 20mm CPVC
• Bathroom branch (serving 1 shower + 1 WC + 1 basin): 20-25mm CPVC
• Apartment main riser (2-3BHK): 25-32mm CPVC
• Building riser serving 4+ flats per floor: 40-50mm
• Underground sump to overhead pump line: 25-32mm GI or HDPE
• Rainwater downtake (per 50 sq m roof): 75mm uPVC
• Soil/waste stack: 110mm uPVC

These are starting points. The actual answer depends on number of fixtures, length of run, number of bends, and head available — which is precisely why a calculator beats a thumb rule every time.
